How to Build a Barbell Chart with Tableau

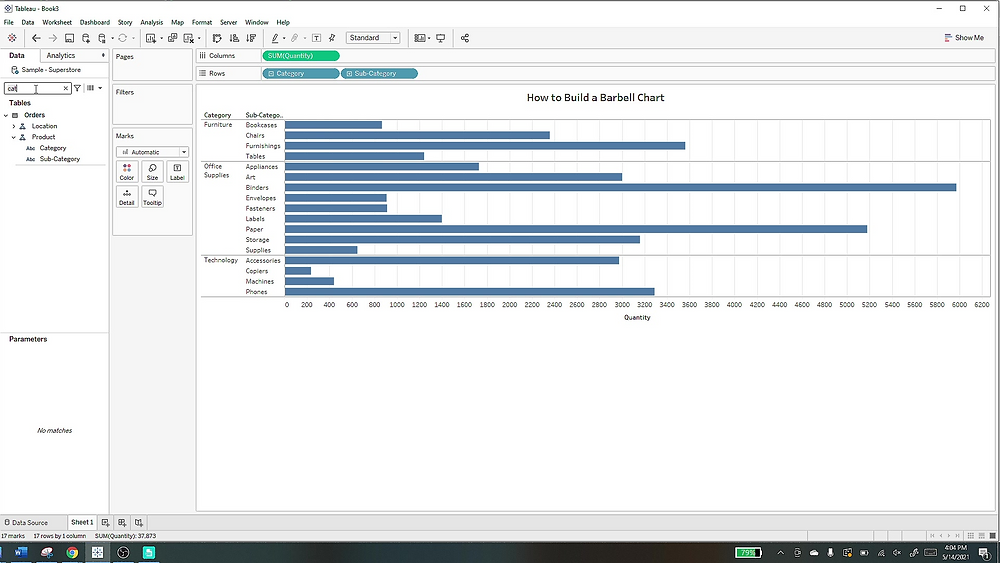

Step 1:

Drag [Quantity] to columns, [Category] to rows, and [Sub-category] to rows. This will create a bar chart.

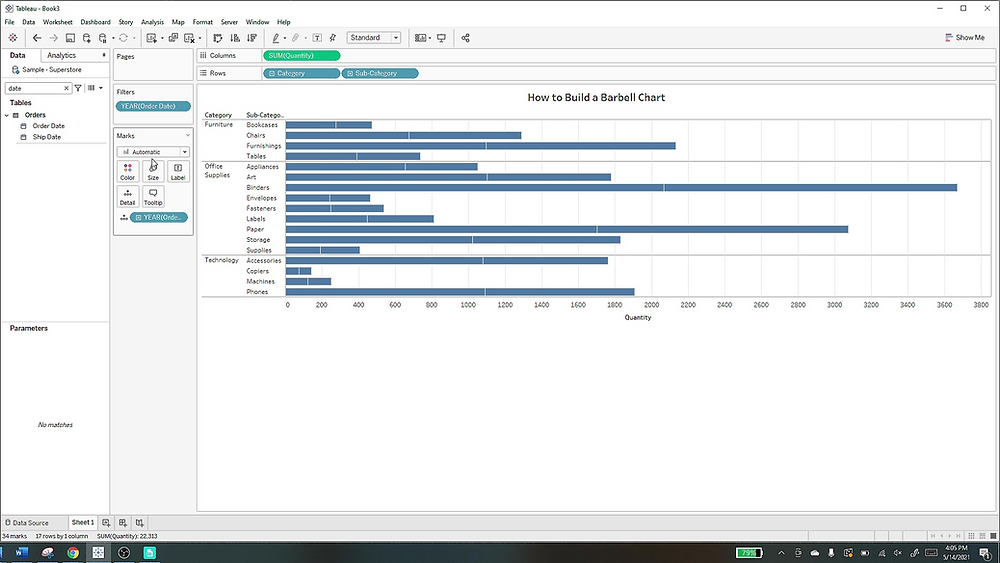

Step 2:

Add Year([Date]) to the detail shelf, and filter out 2017 and 2018.





Step 3:

Change the mark type to circle, and copy year to color. You’ll see the barbells displayed without a line in between.





Step 4:

Copy the [Quantity] pill to create a second axis.





Step 5:

Change the mark type to line, and move year to the path shelf.





Step 6:

Create a dual axis, and you have a barbell chart.
